CAVITATION AIR FLOTATION MACHINE

Cavitation Air Flotation Machine is used to remove impurities such as solid suspended particles, grease and jelly etc. SS and COD can be elimated to the greatest extent under help of chemical flocculant. This machine is applicable for white water and middle-stage wastwater treatment of paper industry.

WhatsApp

微信扫码咨询
Consult now 12345678910 Return

Details



CAVITATION AIR FLOTATION MACHINE

Cavitation Air Flotation Machine is used to remove impurities such as solid suspended particles, grease and jelly etc. SS and COD can be elimated to  the greatest extent under help of chemical flocculant. This machine is applicable for white water and middle-stage wastwater treatment of paper industry.


移动端参数

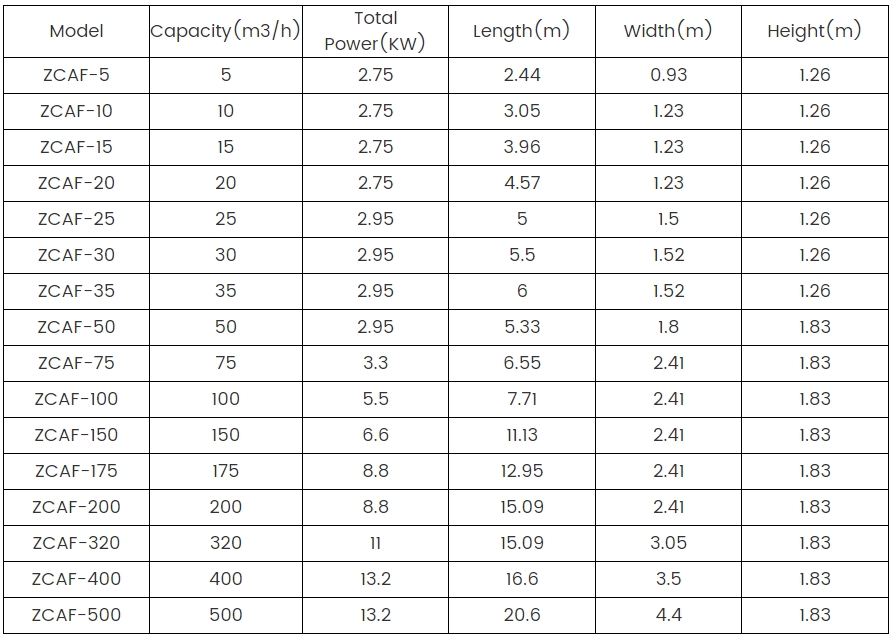

Model Capacity(m3/h) Total Power(KW) Length(m) Width(m) Height(m)
ZCAF-5 5 2.75 2.44 0.93 1.26
ZCAF-10 10 2.75 3.05 1.23 1.26
ZCAF-15 15 2.75 3.96 1.23 1.26
ZCAF-20 20 2.75 4.57 1.23 1.26
ZCAF-25 25 2.95 5 1.5 1.26
ZCAF-30 30 2.95 5.5 1.52 1.26
ZCAF-35 35 2.95 6 1.52 1.26
ZCAF-50 50 2.95 5.33 1.8 1.83
ZCAF-75 75 3.3 6.55 2.41 1.83
ZCAF-100 100 5.5 7.71 2.41 1.83
ZCAF-150 150 6.6 11.13 2.41 1.83
ZCAF-175 175 8.8 12.95 2.41 1.83
ZCAF-200 200 8.8 15.09 2.41 1.83
ZCAF-320 320 11 15.09 3.05 1.83
ZCAF-400 400 13.2 16.6 3.5 1.83
ZCAF-500 500 13.2 20.6 4.4 1.83
