WASTEWATER TREATMENT EQUIPMENT

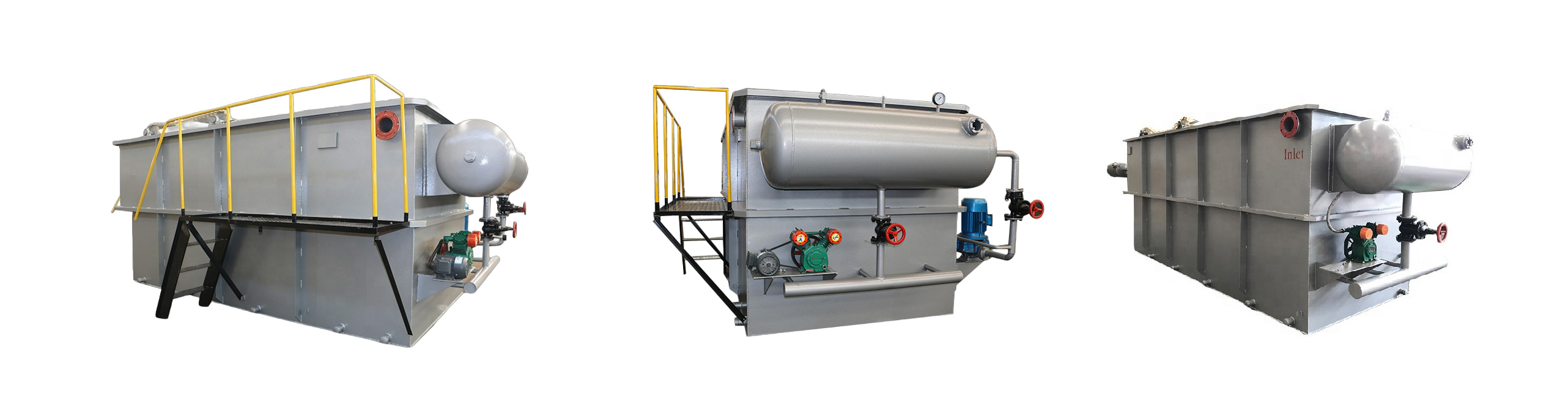

DISSOLVED AIR FLOTATION SYSTEM
YW series Dissolved Air Flotation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
Details

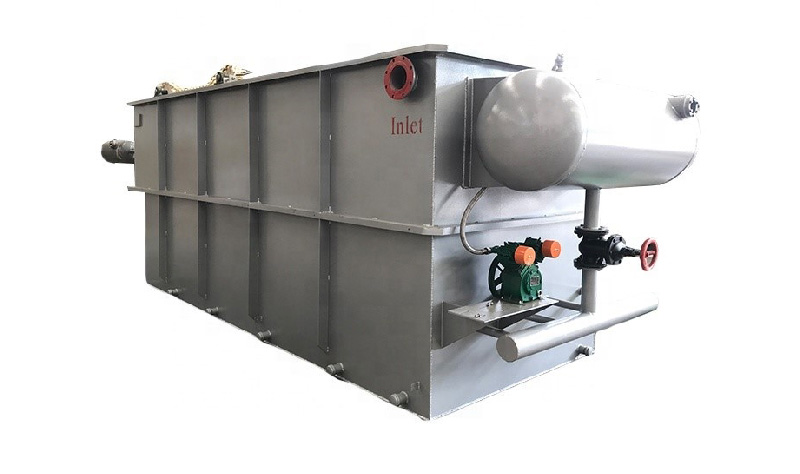

DISSOLVED AIR FLOTATION SYSTEM
YW series Dissolved Air Flotation is mainly for solid-liquid or liquid-liquid separation. Large sum of microbubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

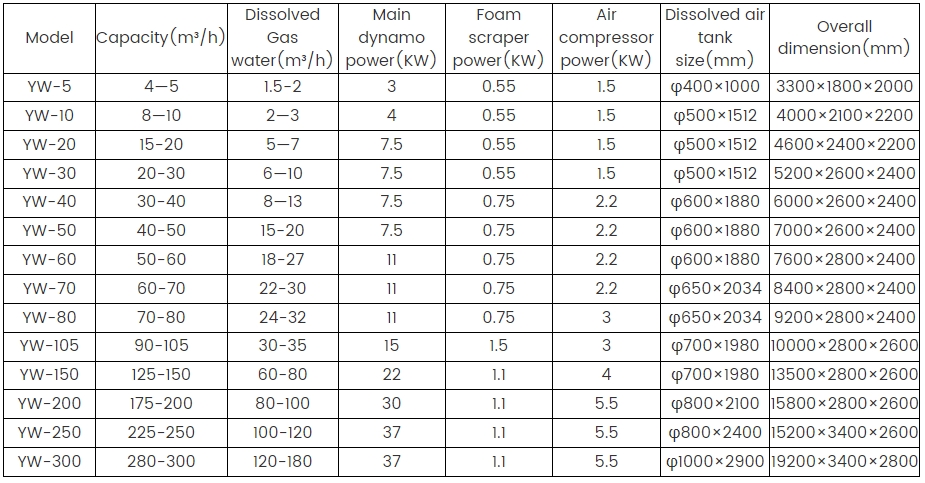

| Model | Capacity(m³/h) | Dissolved Gas water(m³/h) | Main dynamo power(KW) | Foam scraper power(KW) | Air compressor power(KW) | Dissolved air tank size(mm) | Overall dimension(mm) |
| YW-5 | 4—5 | 1.5-2 | 3 | 0.55 | 1.5 | φ400×1000 | 3300×1800×2000 |
| YW-10 | 8—10 | 2—3 | 4 | 0.55 | 1.5 | φ500×1512 | 4000×2100×2200 |
| YW-20 | 15-20 | 5—7 | 7.5 | 0.55 | 1.5 | φ500×1512 | 4600×2400×2200 |
| YW-30 | 20-30 | 6—10 | 7.5 | 0.55 | 1.5 | φ500×1512 | 5200×2600×2400 |
| YW-40 | 30-40 | 8—13 | 7.5 | 0.75 | 2.2 | φ600×1880 | 6000×2600×2400 |
| YW-50 | 40-50 | 15-20 | 7.5 | 0.75 | 2.2 | φ600×1880 | 7000×2600×2400 |
| YW-60 | 50-60 | 18-27 | 11 | 0.75 | 2.2 | φ600×1880 | 7600×2800×2400 |
| YW-70 | 60-70 | 22-30 | 11 | 0.75 | 2.2 | φ650×2034 | 8400×2800×2400 |
| YW-80 | 70-80 | 24-32 | 11 | 0.75 | 3 | φ650×2034 | 9200×2800×2400 |
| YW-105 | 90-105 | 30-35 | 15 | 1.5 | 3 | φ700×1980 | 10000×2800×2600 |
| YW-150 | 125-150 | 60-80 | 22 | 1.1 | 4 | φ700×1980 | 13500×2800×2600 |
| YW-200 | 175-200 | 80-100 | 30 | 1.1 | 5.5 | φ800×2100 | 15800×2800×2600 |
| YW-250 | 225-250 | 100-120 | 37 | 1.1 | 5.5 | φ800×2400 | 15200×3400×2600 |
| YW-300 | 280-300 | 120-180 | 37 | 1.1 | 5.5 | φ1000×2900 | 19200×3400×2800 |
